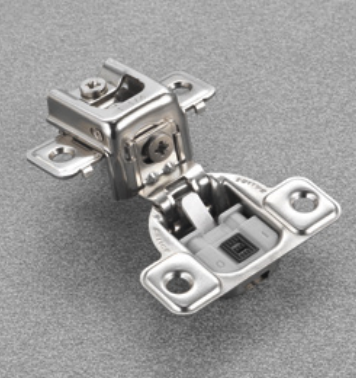

SALICE Compact Hinge (Specs)

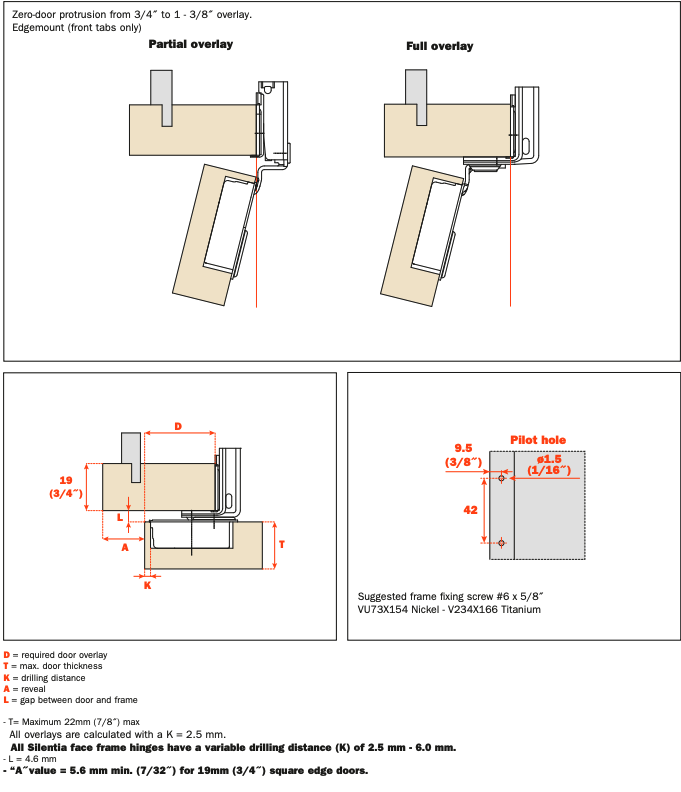

The Salice Compact Hinge is a “one-piece” hinge made for ¾” face frame cabinets but, due to its design, it can be used for thicker frames, if needed, as well as used in certain frameless applications if need be. The hinge is intended for use with 3mm hinge boring. However, the manufacturer does mention that other hinge boring options (up to 6mm) can be used as well. If any other boring options are used other than 3mm, note that the overlay of the hinge will not equal what the hinge overlay is noted to be on the label.

The Salice Hinge comes in a variety of overlay option listed below:

Partial Overlay:

1/2", 9/16", 5/8", and 3/4"

Full Overlay:

1", 1-1/4", 1-5/16", 1-3/8"

The Salice Partial Overlay Hinges have a maximum overlay of 3/4".

Key features:

• 106º Opening Angle

• 2 attachment locations to cabinet frame

• 7/32" Minimum Reveal (TCDS usually recommends 1/4" - 1/2")

• 7/16" Cup Depth

• One Piece Hinge for variable thicknesses of face frame

• Made for Maximum 3/4" Thick Doors

• +/- 1/16″ side adjustment, +3/32″ – 1/64″ depth adjustment

• +3/32″ – 1/16″ Side adjustment

• Uses a 3mm Bore Distance for Overlay Options to match as advertised. However, other Bore Distances are permitted, from 2.5mm-6mm.

• 1/2" Hinge Protrusion

• On/Off Soft Close

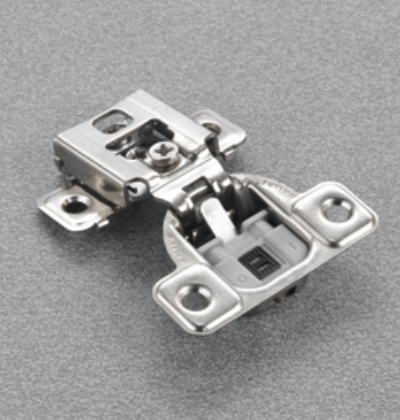

The Salice Full Overlay Hinges have a maximum overlay of 1-3/8".

Key features:

• 106º Opening Angle

• 2 attachment locations to cabinet frame

• 7/32" Minimum Reveal (TCDS usually recommends 1/4" - 1/2")

• 7/16" Cup Depth

• One Piece Hinge for variable thicknesses of face frame

• Made for Maximum 3/4" Thick Doors

• +/- 1/16″ side adjustment, +3/32″ – 1/64″ depth adjustment

• +1/8″ – 3/32″ Side adjustment

• Uses a 3mm Bore Distance for Overlay Options to match as advertised. However, other Bore Distances are permitted, from 2.5mm-6mm.

• 7/16" Hinge Protrusion

• On/Off Soft Close

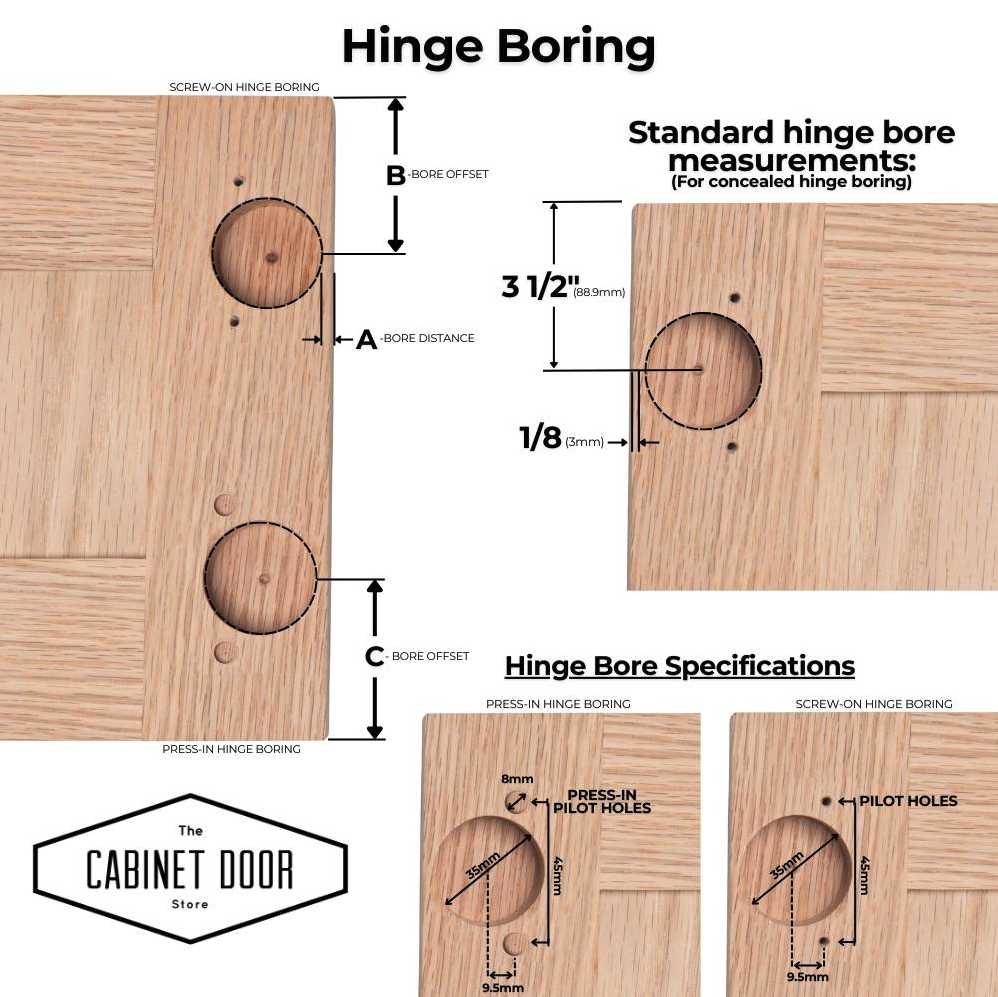

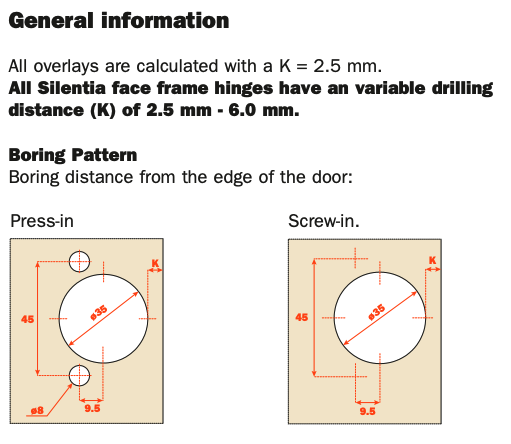

Both the Partial and Full Overlay options come in a Screw-On Option and a Press-In Option. Below are the required hinge boring options:

• 3mm Bore Distance for Overlay Options to match as advertised. However, other Bore Distances are permitted, from 2.5mm-6mm.

• 1/2" (13mm) Cup Bore Depth
